| ชื่อแบรนด์: | Casun |
| เลขรุ่น: | B20SHD4351-C19P |
| MOQ: | 1PC |
| ราคา: | $7~$7.53 |
| เงื่อนไขการจ่ายเงิน: | D/A, T/T, L/C, D/P |
| ความสามารถในการจําหน่าย: | 40000+PCS+Month |

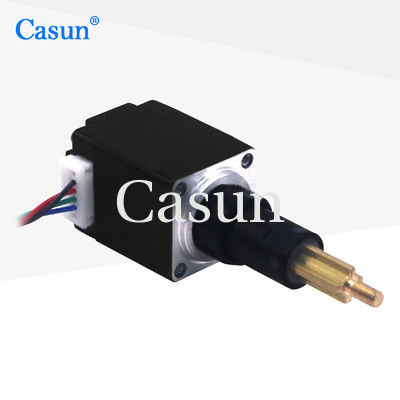

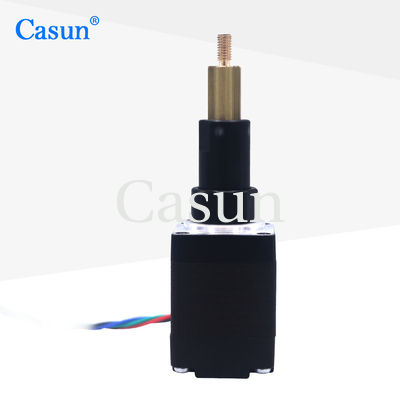

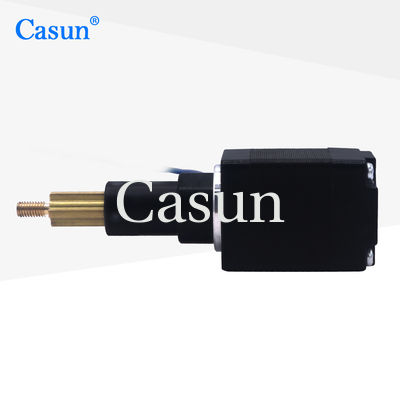

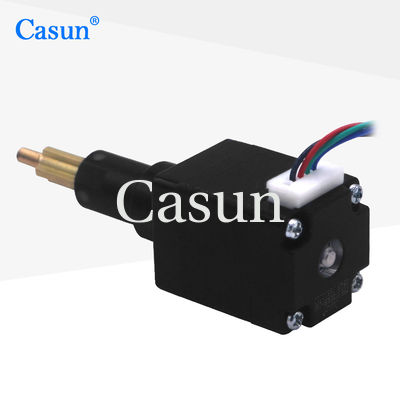

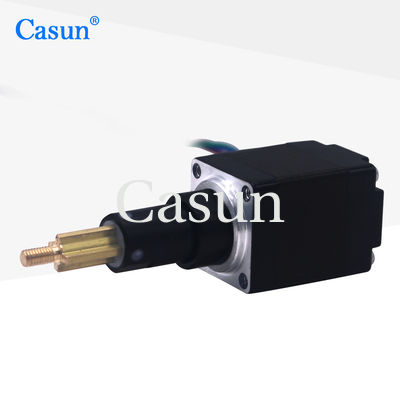

Casun Nema 8 Linear Stepper Motor Hybrid Technology 2.55V 0.8kg at 600pps
The Casun Nema 8 Linear Stepper Motor features hybrid technology, operating at 2.55V and delivering 0.8kg of force at 600pps. Ideal for compact, high-precision applications, it ensures smooth linear motion, reliability, and efficiency in automation and small-scale systems.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
20 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
0.5 Amp |
|
Holding Torque
|
0.8 kg at 600 pps |
|
Resistance
|
5.1 ohm |
|
Inductance
|
1.5 mH |
|
Rotor Inertia
|
2 g.cm² |
|
Motor weight
|
0.1 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 20SHD0304 | 18 mN.m | 1.8° | 28 mm | Round Shaft-20mm | 0.6 A |
| 20SHD0250 | 32 mN.m | 1.8° | 38 mm | Round Shaft-20mm | 0.6 A |
| 20SHD0101 |
30 mN.m |
1.8° | 42 mm | Round Shaft-20mm | 0.8A |
